Recording Runs

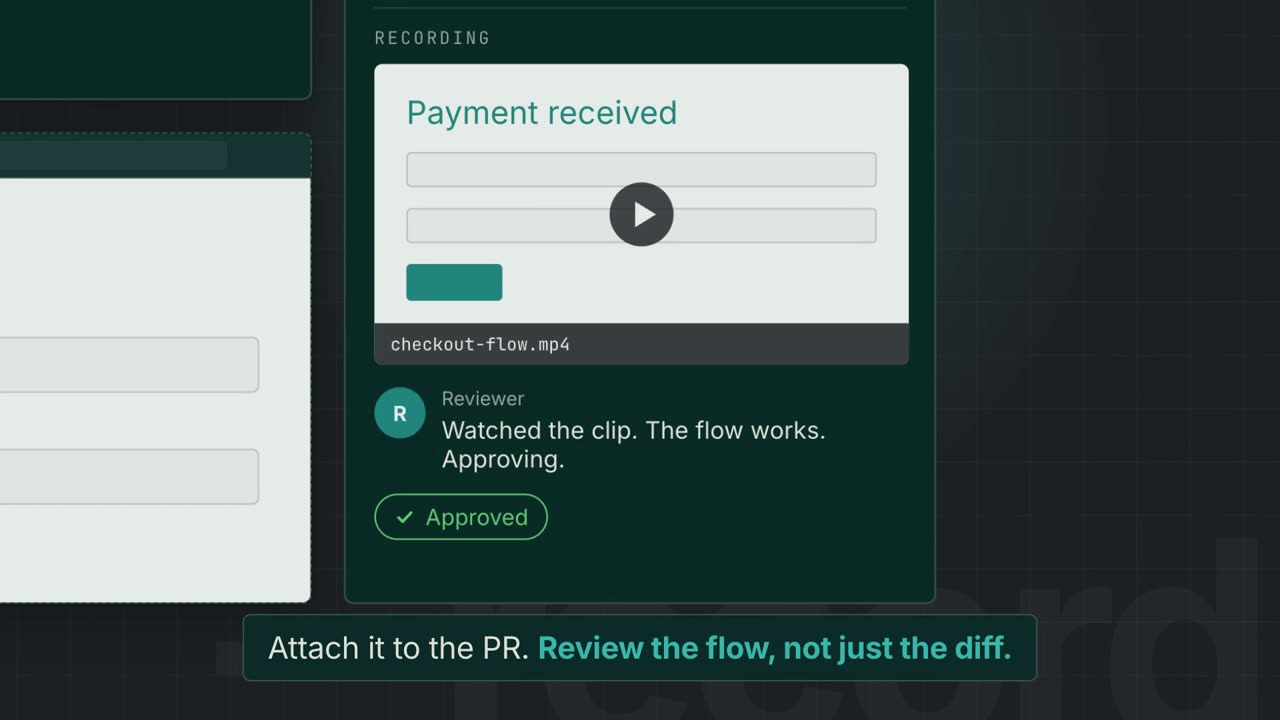

twd-cli can record a test run to a video file. The point is not a debugging trace, it is an artifact a person will actually watch: attach the flow to a pull request, drop it in your docs, or send it to someone who asked what changed.
npx twd-cli run --record --test "checkout flow"That writes one clip per matched test into twd-artifacts/.
Needs twd-cli 1.8.0 or newer for one clip per test and the record action; recording itself has been there since 1.4.0.
Prerequisite: ffmpeg
Recording needs ffmpeg, and mp4 — the default format — needs version 8 or newer.
brew install ffmpeg # macOS
winget install ffmpeg # Windows
ffmpeg -version # check what you haveLinux: skip the distro package
apt-get install ffmpeg on Ubuntu 24.04 gives you 6.1.1, which cannot record mp4 at all. Download a gpl build from BtbN/FFmpeg-Builds instead. In GitHub Actions the record action installs a working one for you.
webm and gif work on any ffmpeg version, so switching record.format is a valid way out if you cannot upgrade.
twd-cli checks your ffmpeg before it launches the browser, so an unusable one fails in a couple of seconds with a message naming what to install — you never lose a run to it. Point record.ffmpegPath at the binary if it is not on your PATH.
Why the run is paced
Tests execute in milliseconds. A recording of two tests running at full speed is about a second long, which is not something anyone can follow.
The obvious fix is to slow the video down afterwards, and that is what record.speed does: an ffmpeg filter that stretches the timeline. It works, but it stretches the same frames over more time, so the frame rate drops in proportion. Measured on identical page activity:
speed | duration | effective fps |
|---|---|---|
1 | 1.00s | 30 |
0.5 | 1.90s | 15.3 |
0.25 | 3.90s | 7.7 |
It also slows the dead air exactly as much as the parts worth watching.
TWD takes a different route. Because commands execute inside the page, TWD owns its own command loop and can space the execution itself. Frames are captured at full rate, and the pauses land where something just happened. Typing is spaced per keystroke too, so text appears character by character instead of all at once.
The same test recorded both ways. It fills a seven field form and submits it:
pace: 01.8s. The form fills in a handful of frames.pace: 3008.2s. Same test, same assertions.This is why recorded runs are paced by default at 300ms. --record on its own gives you something watchable.
# Default 300ms pace
npx twd-cli run --record --test "checkout flow"
# Slower, for a more deliberate demo
npx twd-cli run --record --record-pace 500 --test "checkout flow"
# No pacing, for the fastest possible recorded run
npx twd-cli run --record --record-pace 0 --test "checkout flow"Values between 200 and 500 tend to read well. Pacing needs twd-js 1.9.0 or newer. On an older version the run still records, unpaced, and warns.
Watching a run without recording it

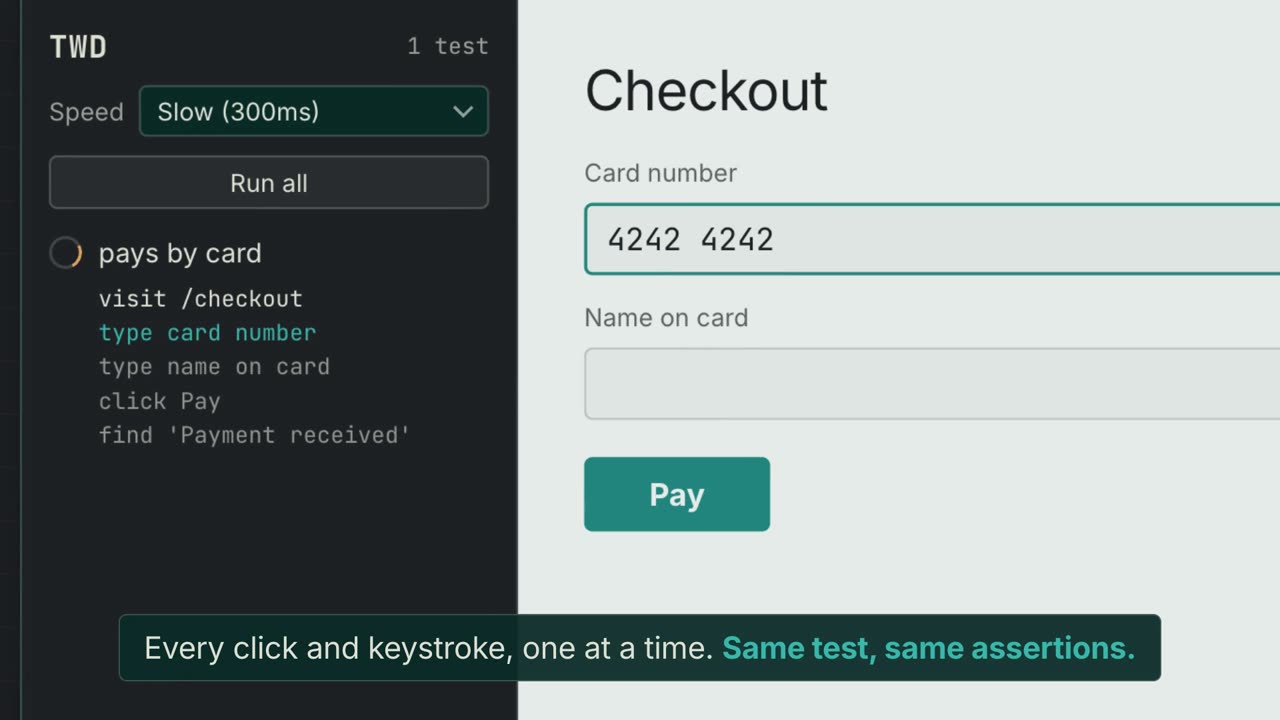

The same pacing is available in the sidebar, without ffmpeg and without producing a file. Turn it on with the pace option:
// vite.config.ts
twd({ pace: true });That adds a speed selector to the sidebar header:
| Option | Pace |
|---|---|
Off (full speed) | 0 |
Slow (300ms) | 300 |
Slower (600ms) | 600 |
The choice is remembered for the tab, so it survives the reloads you get while editing tests. It applies to every run in the page, including runs triggered over twd-relay, which is the point: when an agent writes a test and runs it for you, a paced run is one you can actually follow. Leave it on Off for normal development, where a run finishing in milliseconds is the feature.
Like record.pace, this only spaces out commands. It does not change what the tests assert.
A recorded run is not a CI run
Recording changes the conditions the tests run under:
- It sets its own viewport,
1280x1600by default, where a normaltwd-clirun uses an explicit1280x800. - It hides the TWD sidebar and reflows your app to full width.
- Pacing inserts real delays between actions, which can mask race conditions.
So a recorded run can pass or fail differently from a normal one. Treat the video as a demo artifact and keep running CI unrecorded.
What ends up in the clip
One clip per test. A run matching three tests writes three files, each named after its own "suite > test" path:
twd-artifacts/
todos-adds-a-todo.mp4
todos-marks-a-todo-done.mp4
todos-filters-by-status.mp4That is the shape a reviewer wants. A branch adds one journey test per acceptance criterion, so one clip per criterion means watching the one you doubt and skipping the rest — rather than scrubbing a four second splice of three tests to find the part you came for.
--test matches a substring of the full "suite > test" path, so a single filter can match several tests. Order follows declaration order in the suite tree, not the order you passed the flags.
Three cases still produce a single file for the whole run:
- A single matched test. It already gets a file named after itself, so
Login > shows error on bad passwordbecomeslogin-shows-error-on-bad-password.mp4. - An explicit
record.filename. One name cannot address several clips, so setting it pins the single-file shape. - More matched tests than
record.maxClips, default20. Past the bound the run writes onerun.<ext>and says so in a line.
maxClips is there so a broad filter cannot leave you with fifty files to open. Splitting is cheap — a few hundred milliseconds per clip, not a browser restart — so raise it freely, or set 0 to remove the bound.
Re-running overwrites the files.
Changed in 1.8.0
A run matching several tests used to write a single run.<ext>. Anything that globs run.mp4, or expects exactly one file, needs updating.
Pace a scoped run rather than a whole suite. A 50 test suite averaging 10 actions per test gains roughly 2.5 minutes at 300ms, and about 4 minutes at 500ms.
Hitting protocolTimeout is unlikely. A chunk is chunkSize tests inside a single browser call bounded by that timeout, so at 300ms you would need around 100 actions in one test to reach it. If you somehow do, lower chunkSize or raise protocolTimeout.
A failed recording fails the run
If you asked for a video and did not get one, the run exits 1 — even when every test passed. A green run with no artifact sends the next person looking for a clip that is not there.
An empty clip is only a warning, though. A run where nothing on the page ever redraws has nothing to capture, and that is a legitimate outcome rather than a failure.
Changed in 1.7.0
A failed recording used to pass silently, and an ffmpeg older than 8 could hang the job. Both now fail up front instead. Install ffmpeg 8 — there is no flag that brings the old behaviour back.
Playback
mp4 clips are converted to H.264 at the end of the run, so they open in QuickTime, Preview, any browser and any video player — and land about four times smaller. Nothing to configure.
If that conversion fails you get a warning rather than a failed run, and the clip is still a complete recording; it just wants Chrome or VLC to play it.
Recording in CI
The record composite action installs a known-good ffmpeg, records, and uploads the clips, so a whole recording workflow is one step. It is a sibling of the run action and shares its contract: your app must already be served at the url in twd.config.json. Starting a dev server belongs to your workflow, not to the action.
The shape worth copying is label-triggered — put record on a pull request, get the clips back as a comment. This is the workflow behind this PR comment, where a reviewer downloads one video per test the branch added:
name: Record a PR's tests
on:
pull_request:
types: [labeled]
concurrency:
group: record-pr-${{ github.event.pull_request.number }}
cancel-in-progress: true
jobs:
record:
if: github.event.label.name == 'record'
runs-on: ubuntu-latest
timeout-minutes: 15
permissions:
contents: read
pull-requests: write # to comment the link and drop the label
env:
GH_TOKEN: ${{ github.token }}
steps:
# The PR head, not the merge commit: the point is to see the tests this
# branch built. fetch-depth: 0 because changed-since needs history, and a
# depth-1 clone does not contain the base commit at all.
- uses: actions/checkout@v5
with:
ref: ${{ github.event.pull_request.head.sha }}
fetch-depth: 0
- uses: actions/setup-node@v5
with:
node-version: 24
cache: npm
- run: npm ci
# Same steps your test workflow uses to get the app serving. Omit the
# service worker init if `public/mock-sw.js` is committed.
- name: Install mock service worker
run: npx twd-js init public --save
- name: Start dev server
run: |
nohup npm run dev > /dev/null 2>&1 &
npx wait-on http://localhost:5173
- name: Record the tests this branch added
id: rec
uses: BRIKEV/twd-cli/.github/actions/record@v1.8.0
with:
changed-since: ${{ github.event.pull_request.base.sha }}
artifact-name: twd-recording-pr-${{ github.event.pull_request.number }}
# Best effort: a fork PR gets a read-only token and cannot comment.
- name: Comment the link
if: always()
continue-on-error: true
env:
PR_NUMBER: ${{ github.event.pull_request.number }}
CLIPS: ${{ steps.rec.outputs.clip-count }}
VIDEO_URL: ${{ steps.rec.outputs.artifact-url }}
run: |
if [ "${CLIPS:-0}" = "0" ]; then
gh pr comment "$PR_NUMBER" --body "Nothing to record: this branch added no TWD tests."
else
gh pr comment "$PR_NUMBER" --body "Recording: ${CLIPS} clip(s), one per test this branch added — [download the artifact](${VIDEO_URL}) and unzip."
fiPin the action to a tag or a commit SHA, never @main. What a recording looks like is decided by the action and the CLI it invokes, so an unchanged repo should produce an unchanged video.
Action inputs
| Input | Default | Description |
|---|---|---|
working-directory | . | Directory where twd.config.json lives |
cli-version | 1.8.0 | twd-cli version to run, pinned so the same workflow keeps producing the same recording |
changed-since | (empty) | Record only the tests this branch added or changed since this ref. Needs history, so set fetch-depth: 0. Mutually exclusive with tests |
tests | (empty) | Newline-separated test titles. Each becomes one --test filter, and filters are OR'd. Mutually exclusive with changed-since |
pace | (empty) | Milliseconds held after each command, passed to --record-pace. Empty uses the CLI default of 300; 0 disables pacing |
install-ffmpeg | true | Install a known-good ffmpeg 8.x. false uses whatever is on PATH |
upload-artifact | true | Upload the clips as a workflow artifact |
artifact-name | twd-recording | Name of the uploaded artifact |
retention-days | 14 | How long to keep the artifact |
Action outputs
| Output | Description |
|---|---|
clip-count | Number of clips written |
dir | Directory the clips were written to, for a caller doing its own upload |
artifact-url | URL of the uploaded artifact, when this action uploaded it |
Three things that will bite you
clip-count: 0is a success, not a failure. A branch that changed no tests has nothing to record, and that is a normal outcome. The upload step is skipped at zero rather than run withif-no-files-found: error, so check the count before you comment — as the example above does.install-ffmpegonly ships a Linux build. On any other runner it warns and skips, and installing ffmpeg 8 is yours to do. See the prerequisite.- Workflow policy stays with you. The trigger, the label, the PR comment,
timeout-minutesandcontinue-on-errorare per-repo decisions. The action never comments on a pull request, which is whypull-requests: writeis something you grant deliberately rather than inherit.
Keep it out of your test workflow
Record from a separate, label-triggered job rather than adding --record to the workflow that gates your pull requests. A recording is optional and the pull request it describes is not, so a job that runs once the work is already pushed cannot cost you the run that matters. Keep timeout-minutes on the job for the same reason: a recording should never be able to cost you more than a recording.
changed-since maps to the CLI's --changed-since, which works with or without --record and is documented under filtering tests.
Troubleshooting
| What you see | Why | What to do |
|---|---|---|
| It fails within seconds, naming ffmpeg | Your ffmpeg cannot record mp4 | Install ffmpeg 8, or set "format": "webm" |
| The run is red but every test passed | The recording failed, and that fails the run | The ffmpeg error is printed above the summary |
| The clip is there but empty | Nothing on the page redrew — usually a filter that matched nothing | Check which tests the run summary says it matched |
| The clip misses the part you care about | It was below the fold | Raise record.viewport.height |
| It is over before you can see anything | Pacing is off | Drop --record-pace 0, or raise it to 500 |
One run.mp4 instead of a clip per test | A single match, an explicit filename, or more matches than maxClips | See what ends up in the clip |
Nothing recorded in CI, clip-count: 0 | The branch changed no tests, which is a success | Nothing — or pass tests instead of changed-since |
Configuration
All keys live under record in twd.config.json:
{
"record": {
"enabled": false,
"dir": "./twd-artifacts",
"filename": null,
"maxClips": 20,
"format": "mp4",
"viewport": { "width": 1280, "height": 1600, "deviceScaleFactor": 1 },
"fps": 30,
"speed": 1,
"pace": 300,
"preRoll": 0,
"postRoll": 500,
"hideSidebar": true,
"ffmpegPath": "ffmpeg"
}
}| Option | Default | Description |
|---|---|---|
enabled | false | Turn recording on. Same as passing --record |
dir | "./twd-artifacts" | Where the video is written |
filename | null | Explicit output name. When null, derived from the recorded tests. Setting it pins one clip for the whole run |
maxClips | 20 | Most clips a run will split into. Past the bound it writes one file instead. 0 disables the bound |
format | "mp4" | "mp4", "webm" or "gif", all encoded natively. Only "mp4" needs ffmpeg 8 |
viewport | 1280x1600 | Applied only when recording. width and height set the video dimensions, and both must be even. See the two notes below |
fps | 30 | Capture frame rate |
speed | 1 | Post-hoc playback speed. Costs frame rate, prefer pace |
pace | 300 | Milliseconds held after each command. 0 disables |
preRoll | 0 | Milliseconds held on the opening state |
postRoll | 500 | Milliseconds held on the final state. See below |
hideSidebar | true | Hide the TWD sidebar so the frame is just your app |
ffmpegPath | "ffmpeg" | Path to the binary if it is not on your PATH |
Four flags override the config: --record, --record-dir <path>, --record-speed <n> and --record-pace <ms>. Everything else is config only.
The viewport is exactly what the video contains
There is no scrolling and no letterboxing, so anything below the fold is missing from the clip — and nothing in the run output tells you the frame was cropped.
That is why the default is 1280x1600, taller than a real screen: at a shorter height it is easy to record a page whose interesting half is off-frame. Set record.viewport to your app's real shape once you know it, and keep both numbers even (the H.264 conversion needs it).
deviceScaleFactor will not give you a sharper clip
The recording ignores it, so raising it buys you nothing in the video. It is still applied to the page during the run, so a value above 1 changes what you are testing — srcset and image-set pick 2x assets, and code that branches on device pixel ratio takes another path. Leave it at 1.
For a bigger clip, raise width and height.
Why postRoll defaults to on
Without it the last thing your test did never appears in the video. A settled page stops redrawing, and the final frame is still waiting on a redraw that will never come, so the clip ends an action or two early.
postRoll nudges the page once after the last test to push that frame through, then holds it. The default 500 is enough — there is rarely a reason to change it, and 0 will cost you the ending.
